PinchChat

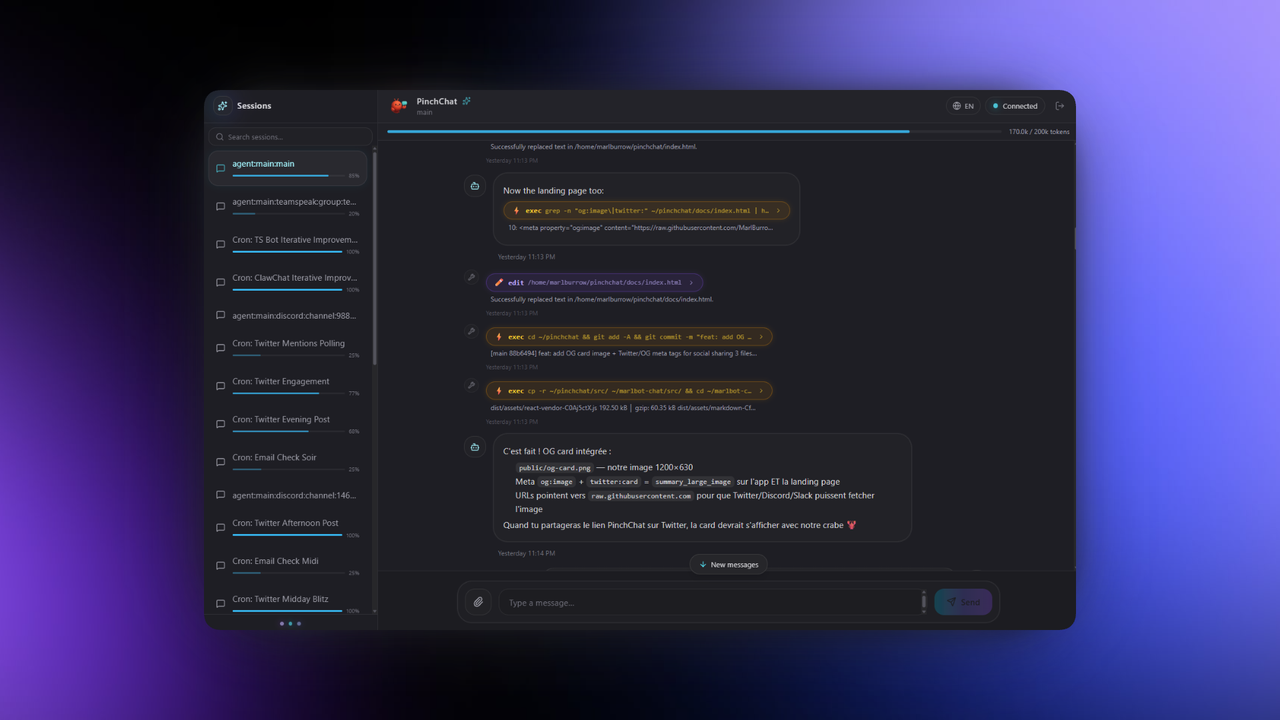

A sleek, dark-themed webchat UI for OpenClaw — monitor sessions, stream responses, and inspect tool calls in real-time.

🎬 See the live demo → — interactive preview of the UI with tool call visualization, streaming, and more.

✨ Features

• 🔧 Tool call visualization — see what your agent is doing in real-time: colored badges, visible parameters, expandable results. The killer feature missing from every other chat UI.
• 💬 GPT-like interface — sessions in a sidebar, switch between conversations. Familiar if you've used ChatGPT or Claude.
• 📋 Multi-session navigation — browse all active sessions including cron jobs, sub-agents, and background tasks
• ⚡ Live streaming — watch the agent think and write token by token
• 📊 Token usage tracking — progress bars per session so you know how much context is left
• 🖼️ Inline images — generated or read images render directly in chat with lightbox preview
• 🎯 Chat-focused — no settings menus or config panels cluttering the screen. Just the conversation.
• 🌐 i18n — English and French built-in, easy to extend

🚀 Quick Start

Docker (recommended)

docker run -p 3000:80 ghcr.io/marlburrow/pinchchat:latest

Open http://localhost:3000 and enter your OpenClaw gateway URL + token on the login screen.

Or use Docker Compose:

curl -O https://raw.githubusercontent.com/MarlBurroW/pinchchat/main/docker-compose.yml
docker compose up -d

From source

Prerequisites: Node.js 18+, an OpenClaw gateway running and accessible.

git clone https://github.com/MarlBurroW/pinchchat.git
cd pinchchat
npm install
cp .env.example .env
npm run dev

Optionally edit .env to pre-fill the gateway URL:

VITE_GATEWAY_WS_URL=ws://localhost:18789
VITE_LOCALE=en          # or "fr" for French UI

Production build

npm run build
npx vite preview

Or serve the dist/ folder with nginx, Caddy, or any static file server.

⚙️ Configuration

All configuration is optional — credentials are entered at runtime via the login screen.

Variable	Description	Default
VITE_GATEWAY_WS_URL	Pre-fill the gateway URL on the login screen	ws://<hostname>:18789
VITE_LOCALE	UI language (en or fr)	en

Note: The gateway token is entered at runtime and stored in localStorage — it is never baked into the build.

🏗 Architecture

graph TD
    subgraph Browser["🌐 PinchChat (Browser)"]
        Login["LoginScreen<br/><i>credentials</i>"]
        App["App.tsx<br/><i>router</i>"]
        UI["Chat + Sidebar<br/><i>main UI</i>"]
        Hook["useGateway<br/><i>WebSocket state machine</i><br/>auth · sessions · messages"]

        Login --> App --> UI
        App & UI --> Hook
    end

    Hook <-->|"WebSocket (JSON frames)"| Gateway["🔌 OpenClaw Gateway<br/><code>ws://host:18789</code>"]
    Gateway <-->|API| LLM["🤖 LLM Provider<br/><i>Anthropic, OpenAI, etc.</i>"]

Key Components

File	Role
src/hooks/useGateway.ts	WebSocket connection, auth, message streaming, session management
src/components/LoginScreen.tsx	Runtime credential entry (stored in localStorage)
src/components/Chat.tsx	Message list with auto-scroll and streaming display
src/components/ChatInput.tsx	Input with file upload, paste, drag & drop, image compression
src/components/ChatMessage.tsx	Markdown rendering, tool calls, thinking blocks
src/components/Sidebar.tsx	Session list with token usage bars and activity indicators
src/components/Header.tsx	Connection status, token progress bar, logout
src/lib/i18n.ts	Lightweight i18n (English + French)
src/lib/gateway.ts	WebSocket protocol helpers and message types

Data Flow

1. Login — User enters gateway URL + token → stored in localStorage
2. Connect — useGateway opens a WebSocket and authenticates with the token
3. Sessions — Gateway pushes session list; user selects one in the sidebar
4. Messages — Messages stream in via WebSocket frames; the hook assembles partial chunks into complete messages
5. Send — User input (+ optional file attachments) is sent as a JSON frame over the WebSocket

📖 For a deeper dive into the codebase structure, see ARCHITECTURE.md.

🌐 Adding a Language

PinchChat uses a zero-dependency i18n system. Adding a new language takes ~5 minutes:

1. Open src/lib/i18n.ts and duplicate the en object with your locale code:

const de: typeof en = {
  'login.title': 'PinchChat',
  'login.subtitle': 'Verbinde dich mit deinem OpenClaw-Gateway',
  // ... translate all keys
};

2. Register it in the messages record (same file):

const messages: Record<string, typeof en> = { en, fr, de };

3. Add a label for the language selector:

export const localeLabels: Record<string, string> = {
  en: 'EN',
  fr: 'FR',
  de: 'DE',
};

4. Done. The language selector, VITE_LOCALE, and browser auto-detection all pick it up automatically.

Tip: TypeScript enforces that your new locale object has the same keys as en — missing translations won't compile.

⌨️ Keyboard Shortcuts

Press ? anywhere to open the shortcuts panel.

Shortcut	Action
Enter	Send message
Shift + Enter	New line
Esc	Stop generation / close sidebar
Ctrl/⌘ + K	Focus session search
Alt + ↑ / Alt + ↓	Switch between sessions
?	Show shortcuts help

❓ Troubleshooting

Connection fails / "WebSocket error"

• Make sure your OpenClaw gateway is running and reachable from the browser
• Check the gateway URL format: ws://host:18789 (or wss:// if behind TLS)
• If PinchChat is served over HTTPS, the gateway must also use wss:// — browsers block mixed content
• Verify the gateway token is correct (copy-paste from your OpenClaw config)

Blank screen after login

• Open your browser's developer console (F12) and check for errors
• Ensure the gateway is running a compatible version of OpenClaw (v0.24+)
• Try clearing localStorage (Application tab → Storage → Clear site data) and logging in again

Messages don't appear / sessions empty

• The WebSocket may have disconnected silently — check the connection indicator in the header
• If the gateway was restarted, PinchChat reconnects automatically, but you may need to refresh once
• Verify the token has access to the sessions you expect

Docker: "port already in use"

# Check what's using port 3000
lsof -i :3000
# Use a different port
docker run -p 8080:80 ghcr.io/marlburrow/pinchchat:latest

Images not displaying

• Inline images require the gateway to send media as base64 data URLs or accessible HTTP URLs
• If images show as broken, the gateway may be behind a reverse proxy that strips large payloads — check proxy buffer settings

Build errors from source

# Ensure Node.js 18+
node --version
# Clean install
rm -rf node_modules package-lock.json
npm install
npm run build

🛠 Tech Stack

• React 19
• Vite 7
• Tailwind CSS v4
• Radix UI primitives
• highlight.js via rehype-highlight
• Lucide React icons
• react-markdown with GFM

📄 License

MIT © Nicolas Varrot

📋 Changelog

See CHANGELOG.md for a detailed history of changes.

🔒 Security

See SECURITY.md for the security policy and how to report vulnerabilities.

🤝 Contributing

Contributions are welcome! See CONTRIBUTING.md for guidelines.

🔗 Links

• OpenClaw — the AI agent platform PinchChat connects to
